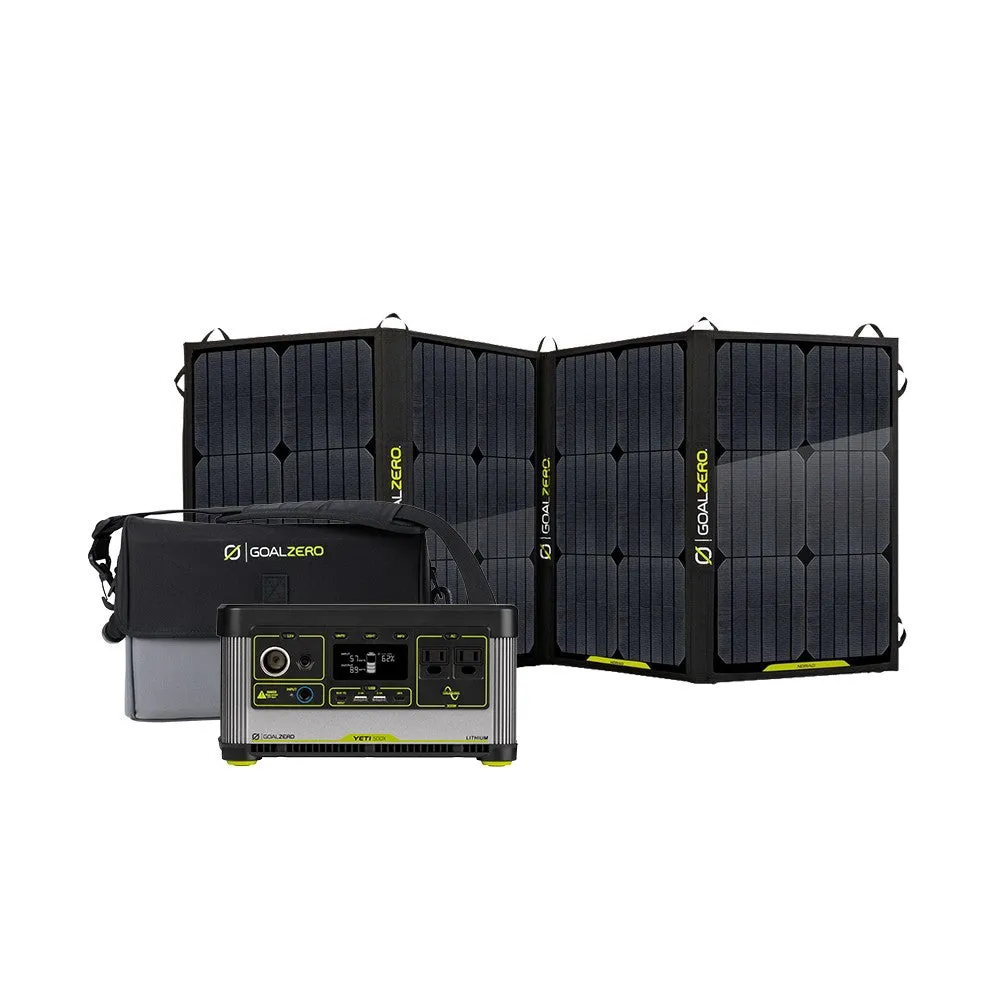

Compact enough for on the go, powerful enough to keep phones, tablets, and laptops charged for several days. The kit pairs the Yeti 500X with our powerful Nomad 100 Panel, 12V Car Charging Cable, and added protection case.
box1
Yeti 500X Nomad 100 Solar Generator HIGHLIGHTS
This solar generator can recharge from the sun in as little as 6 hours.
Lightweight and portable, this generator is ideal for someone on the move who wants a fast charge time.
A sustainable energy source with no noise and no fumes.
box2

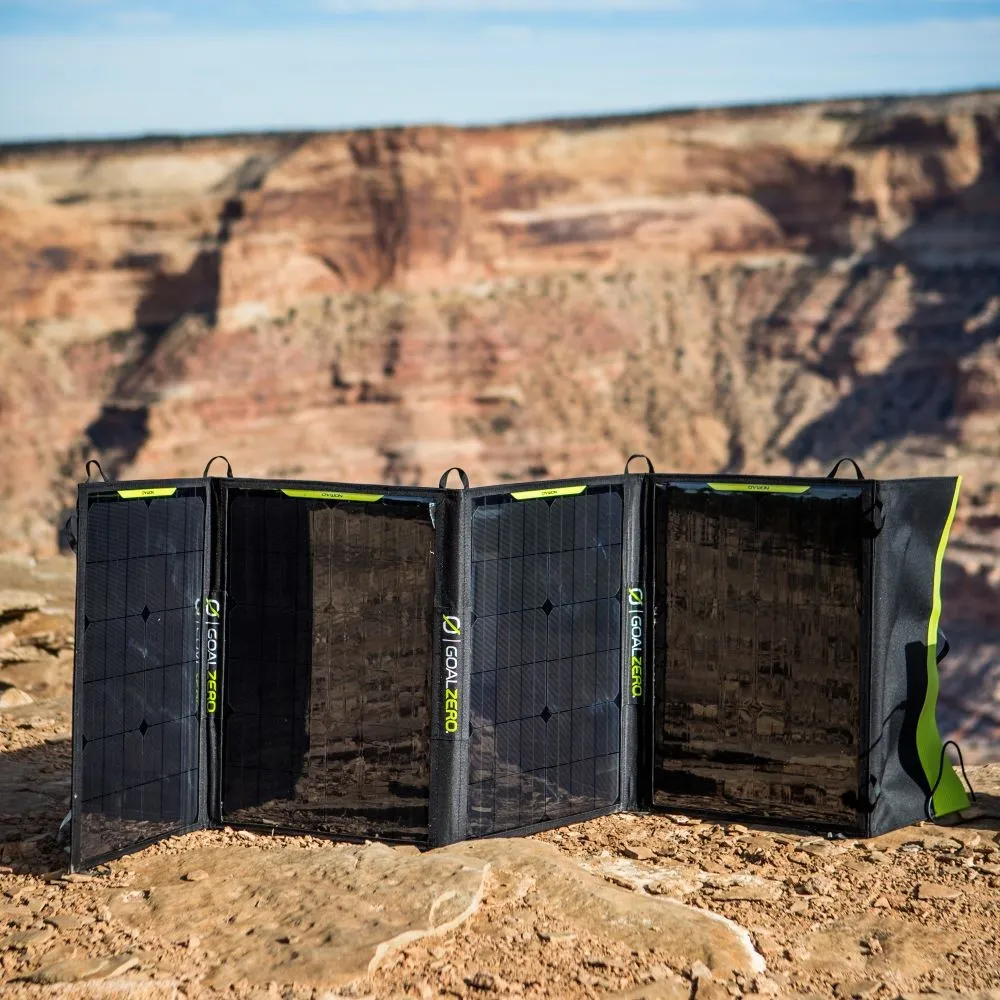

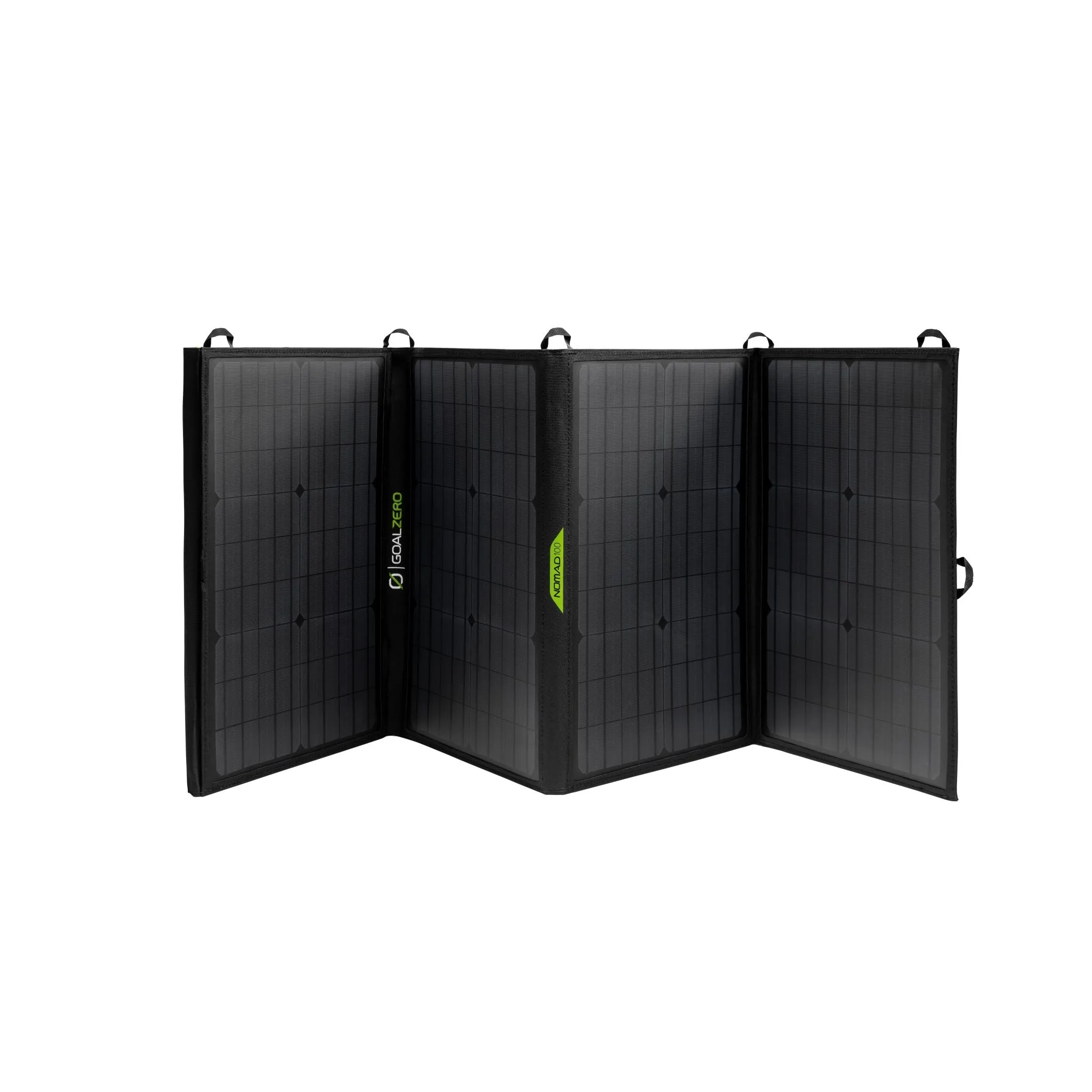

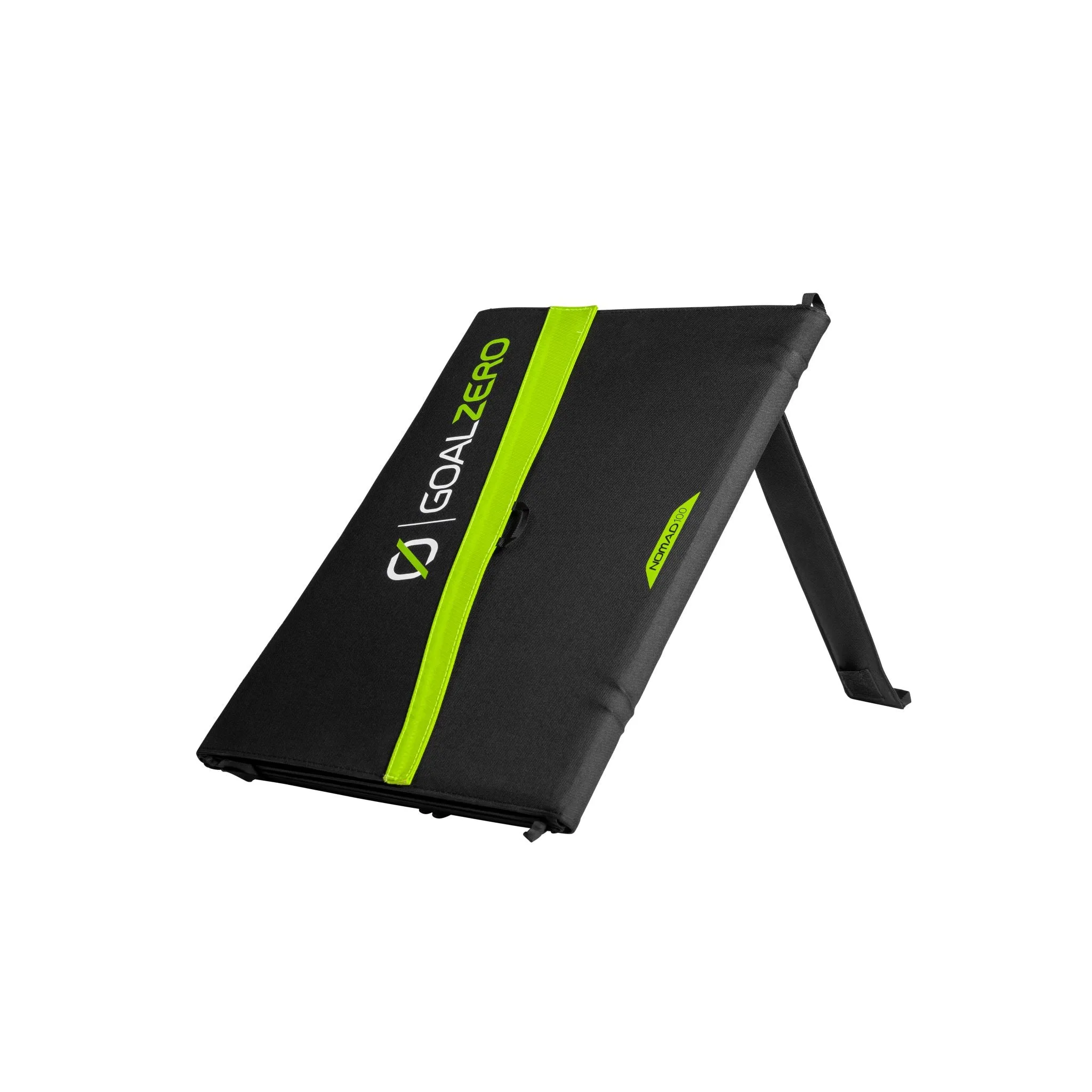

NOMAD 100 HIGHLIGHTS
100-Watt (14-22V) foldable and weatherproof solar panel
Big wattage and weighs only 10 lbs.

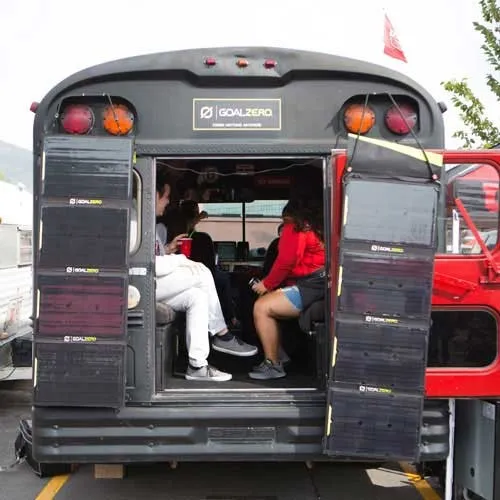

For chaining multiple Nomad 100 solar panels together, purchase a 4X 8MM COMBINER TO HIGH POWER PORT CONNECTOR.
TIPS & TRICKS FOR USING SOLAR PANELS
- The solar panel does not hold a charge - it produces power when it is exposed to sunlight.
- Place solar panels towards the sun at an angle.
- Connect High Power Power to Yeti Power Station.
- Adjust solar panel as the sun moves across the sky.
box3
WAYS TO CHARGE THE YETI 500X
- FROM THE SUN
Recharge from the sun by connecting a compatible solar panel, either the foldable Nomads or mountable Boulder solar panels. The higher the watts of the panel, the faster the charging times. - FROM THE WALL
Plug it into the wall using the included 60W power supply for a full recharge in just 10 hours, or plug in with the Yeti X 120W Power Supply to halve that charge time. You can also use any USB-C power supply to charge the power station. - FROM THE CAR
Plug into your vehicle's 12V outlet using the Goal Zero Yeti Lithium 12V Car Charging Cable NOTE: Do not attempt to charge your Yeti from a 12V source using any other cable. Doing so may cause damage to the unit.
specs
features

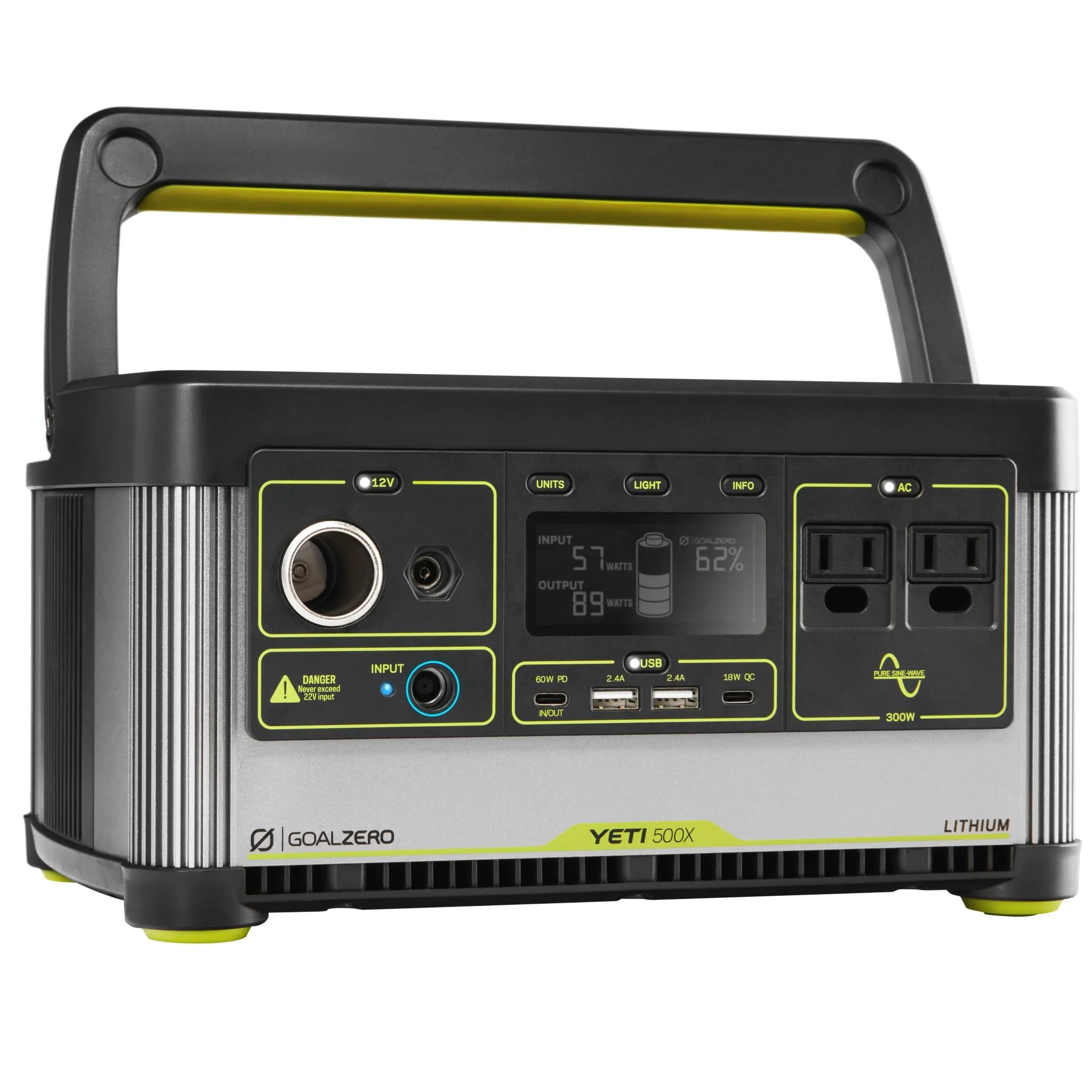

YETI 500X HIGHLIGHTS
- Power a Wide Range of Devices
Yeti 500X is equipped with four different port options - including AC, 12V, and 60W USB-C PD - to power everything from phones to portable fridges. - High-Speed Charging Solution
Equipped with the latest charging technology, including a high-speed Power Delivery port capable of charging USB-C laptops, tablets, mirrorless cameras, and phones in a fraction of the time. - Experience Unlimited Power
Charge the Yeti 500X from the sun with our portable solar panels while away from the grid and keep it topped off from a wall outlet when you’re home. Featured MPPT charge controller ensures you’re getting the most efficient solar charge possible.
NOMAD 100 HIGHLIGHTS
- 100-Watt (14-22V) foldable and weatherproof solar panel
- Big wattage and weighs only 10 lbs. For chaining multiple Nomad 100 solar panels together, purchase a 4X 8MM COMBINER TO HIGH POWER PORT CONNECTOR.
WHAT CAN THE YETI 500X POWER?
Recharges
Smart Phone (12 Wh): 42
Tablet (30 Wh): 17
Laptop (50 Wh): 10
POV Camera (5 Wh): 101
DSLR Camera (18 Wh): 28
Head Lamp (5 Wh): 101
Hours of Runtime
Light-a-Life 350 (4.5 W): 112
Light Bulb (11 W): 46
CPAP (65 W): 8
TV (42" LED) (100 W): 5
Pellet Grill (60 W): 9
Portable Fridge (25 W): 20
WiFi Router (25 W): 20
WHAT'S IN THE BOX
- Goal Zero Yeti 500X Power Station
- Nomad 100 Solar Panel

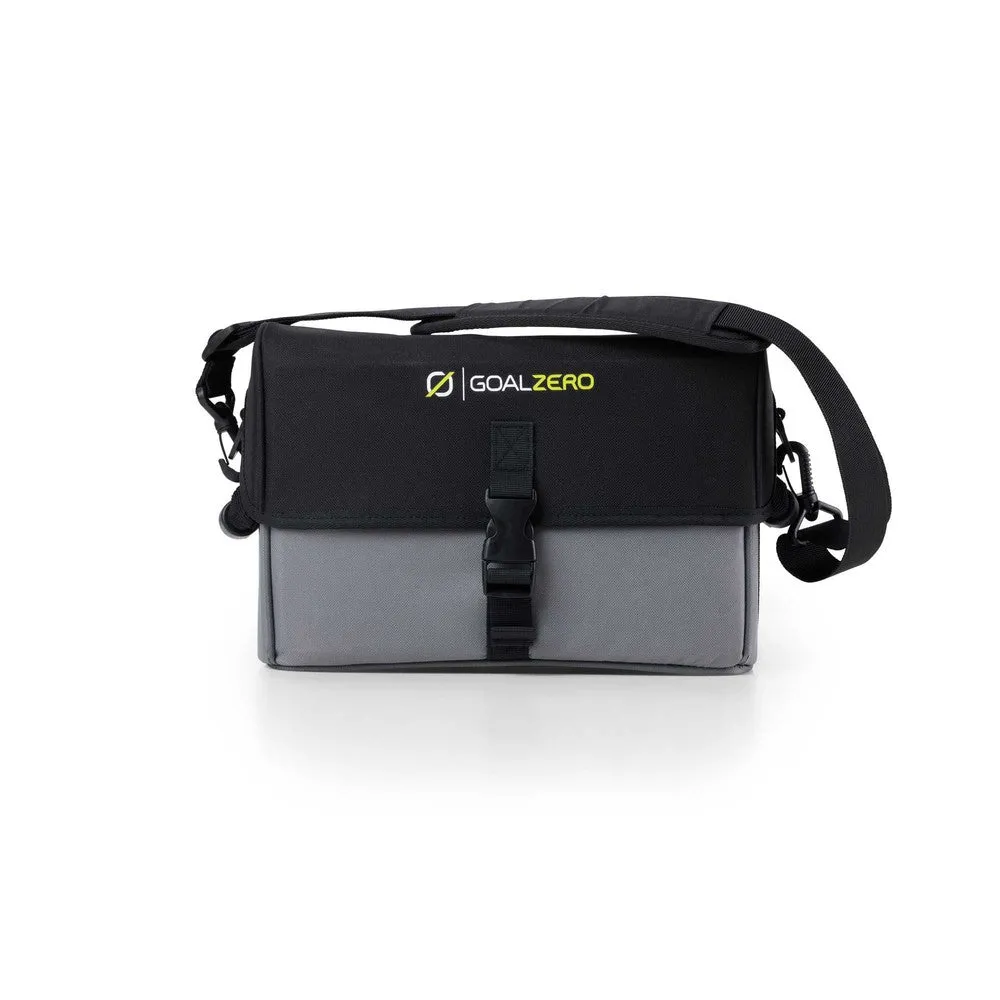

- 500X Protection Case
- Yeti 12V Car Charging cable
- 60W Power Supply
tech
YETI 500x CHARGE TIMES
- Maximum input (180W): 3 hrs
- Car charger (120W): 4.5 hrs
- Wall charger (60W): 10 hrs
- Wall charger (120W): 4.5 hrs
- Nomad 20: 30-60 Hours
- Nomad 50: 12-24 Hours
- Boulder 50: 12-24 Hours
- Nomad 100: 6-12 Hours
- Boulder 100 Briefcase: 6-12 Hours
- Boulder 100: 6-12 Hours
- Boulder 200 Briefcase: 3-6 Hours
BATTERY DETAILS
- Cell chemistry: Li-ion NMC
- Pack capacity: 497Wh (10.8V, 46.8Ah)
- Lifecycles: 500 Cycles to 80% capacity (Discharge rate: 0.2C, Full charge/discharge, Temp: 25C)
- Shelf-life: Charge every 3-6 months
- Management system: 'MPPT' charge controller, low battery protection

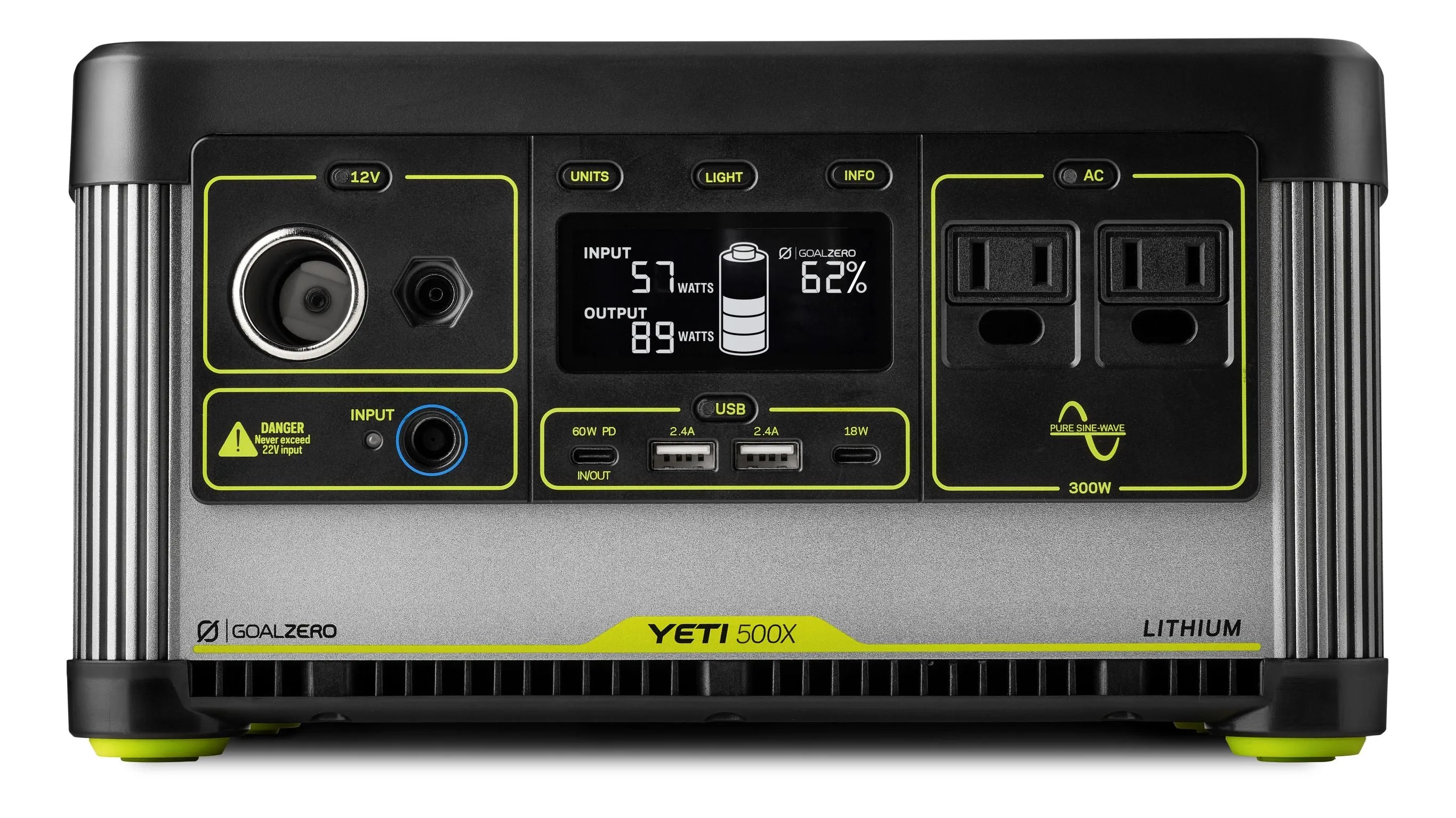

PORTS
- USB port (Output): 5V, up to 2.4A (12W max), regulated
- USB-C port (Output): 5/9V, up to 3.0A (18W max), Regulated
- USB-C PD port (Input/ Output): 5-20V, up to 3.0A (60W max), Regulated
- 6mm port (Output, 6mm): 12V, up to 10A (120W max)
- 12V car port (Output): 12V, up to 10A (120W max), Regulated
- 120V AC Inverter: 120VAC 60Hz, 2.5A (300W, 1200W surge) (output, pure sine wave)
- Charging port (input, 8mm): 13-22V, up to 10A (150W max)
GENERAL
- Kit SKU: 44506
- Chainable: No
- Simultaneous Recharge & Discharge: Yes
- Product SKU: 36100
- Weight: 12.9 lbs (5.85 kg)
- Dimensions: 7.5 x 11.25 x 5.8 in (19.05 x 28.58 x 14.73 cm)
- Operating usage temp.: 32-104 F (0-40 C)
- Warranty: 2 years
tech2
NOMAD 100 CHARGE TIMES
- Yeti 200X: 2-4 hours
- Yeti 400: 6-12 Hours
- Yeti 400 Lithium: 7-14 Hours
- Yeti 500X: 6-12 Hours
- Yeti 1000 Lithium: 16-32 Hours
- Yeti 1400 Lithium: 22-44 Hours
- Yeti 1500X: 18-36 Hours
- Yeti 3000 Lithium: 36-72 Hours
- Yeti 3000X: 36-72 Hours
GENERAL
- Product SKU: 13007
- Weight: 10.2 lbs (4.6 kg)

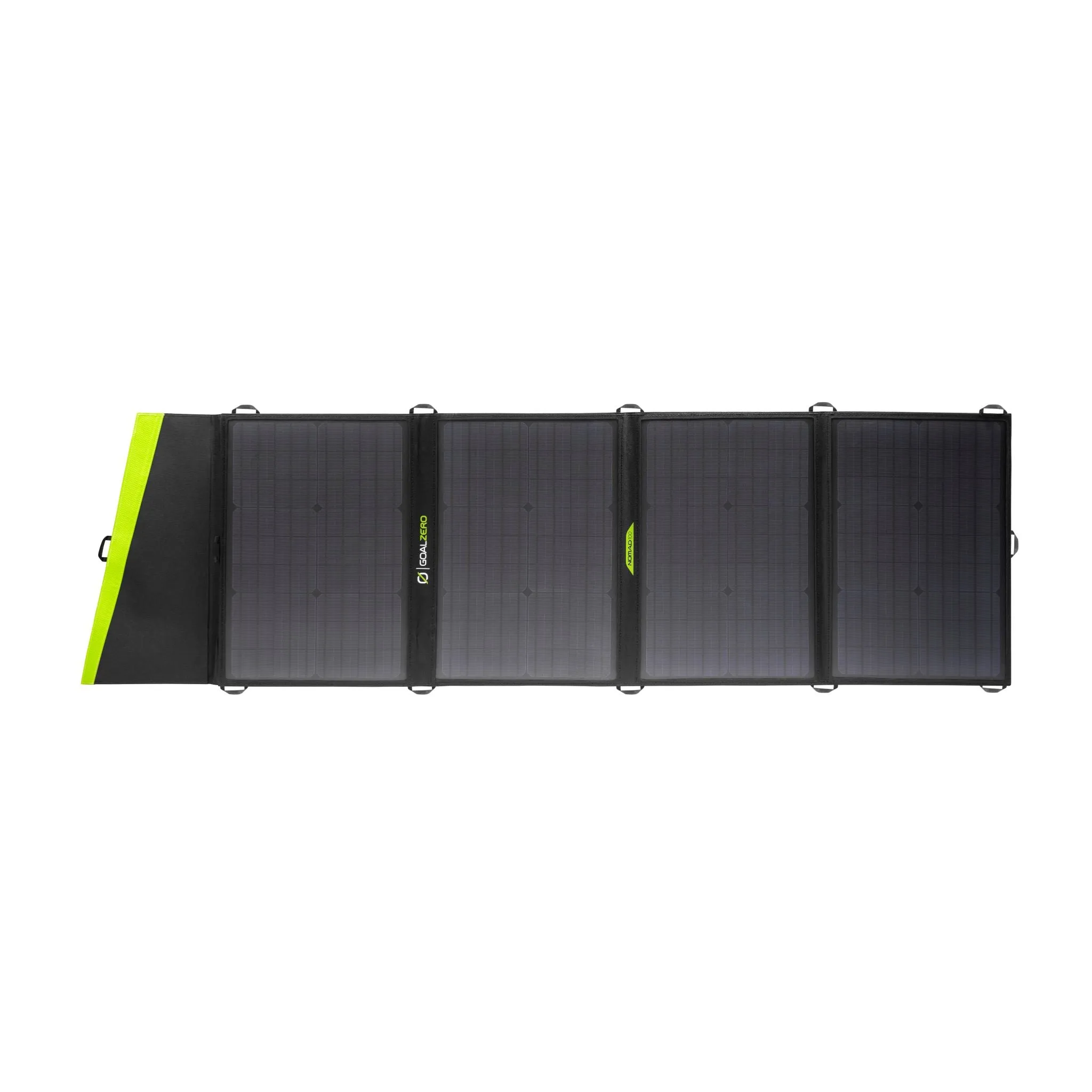

- Dimensions (unfolded): 20.5 x 59.5 x 1 in (52 x 151.1 x 2.54 cm)
- Dimensions (folded): 20.5 x 15.5 x 2 in (52 x 39.37 x 5.08 cm)
- Cable Length: 6ft
- Warranty: 2 years
PORTS
- Solar Port (blue 8mm, male): 14-22V, up to 5.56A (100 max)
GENERAL
- Dims – 12.5 x 8.5 x 8.5 in (31.75 x 21.59 x 21.59 cm)
- Weight – 2.12lbs (0.96 kg)
12V CAR CHARGER PORTS
- Input: 12V Male Cigarette
- Output: 8.0mm (12V, up to 10A)
GENERAL
- Product SKU: 98079
- Cord Dims: 120 x 2.5 x 1 in (304.8 x 6.35 x 2.54 cm)
- Used with: Goal Zero Yeti 150, 200X, 400, 400 Lithium, 500X, 1000, 1250, 1400, 1500X, 3000, 3000X, 6000X and Sherpa 50, 100, and 100AC
